Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved

    Buy cheap Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved from wholesalers

    Buy cheap Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved from wholesalers
    • Buy cheap Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved from wholesalers

    Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved

    Ask Lasest Price
    Brand Name : HAOLISEN
    Model Number : HR-7001LB/HR-7010
    Certification : IATF16949 , ISO9001
    Price : Negotiation
    Supply Ability : 200 Tons Per Day
    Delivery Time : 30-60 Days
    • Product Details
    • Company Profile

    Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved


    High throwing power (Four-box method)grey electrophoretic paint


    Product Introduction :


    HR-7001LB/HR-7010 Gray Cationic Epoxy Electrocoat for auto is the 8th generation electrophoretic coating researched and developed by HLS Paint (Shanghai) Co., Ltd. in cooperation with Germany HS International Chemical Industry Group. It represents modern technology of cathodic electrophoretic coating that is environment-friendly with high property and low cost. Such coating does not contain heavy metal like lead, tin, cadmium and mercury etc. It is a two-component, water-dispersed resin,meanwhile, it took in features of previous products, and can adapt galvanized steel sheet perfectly, almost can be applied to foundation coating of all metal, such as: cold and hot rolled steel sheet, galvanized steel sheet, aluminum products, zinc-aluminum alloy sheet and stainless steel sheet etc


    This product features shown below:



    Strong anti-corrosion properties, good salt spray resistance workpiece edge



    High throwing power, internal and external uniformity


    Coating fullness of good, better substrate hiding



    suitable for auto body industry, such as cars, SUV and other models




    The main component :


    Pigment: Titanium pigment, carbon black, kaolin, antirust pigment


    Additives: surface active agent, prevent shrinkage cavity agent, anti-yellowing agent.


    Matrix resin: polyurethane modified epoxy resin



    The main supplier :


    Material name

    Supplier

    Polyisocyanates


    Bayer

    Kaolin


    Neuburg

    Carbon black


    Cabot Corporation

    Bath on site management project :


    Good bath data and coating quality, from the strict parameters management and maintenance of equipment, production line according to its own reality time situation, can have different management project and specifications, recommend the construction parameters see the table below for reference:


    ClassificationProjectControl DataTesting frequency
    New bathAnolyte
    Electrophoresis tankRatio1:6--
    Ripening time24-48--
    Solid ( 120 ℃ /1h ,% )18±2--once a day
    PH5.8-6.22.0-3.5once a day
    Conductivity ( μs/cm )1200±4002000±1000once a day
    P/B0.20-0.35once a week
    Throwing power (Four-box method), ≥≥70%once a year
    Soluble(%)Good appearance, coating survival rate≥95once a week
    Solvent content (%)0.8-1.5once a week
    Liquid level Fall head (cm )10-15once a day
    ED voltage( V )0-300once a day
    Break voltage ( V )≥350once a week
    Bath temperature ( ℃ )32-36once a day
    ED time( S )60~180once a day
    UF - 1 TankSolid content (%)≤2.0once a day
    UF - 2 TankSolid content (%)≤0.8once a day
    Baking furnaceProvisions furnace temperature( ℃ )180-200once a day
    Curing conditionsDrying temperature165 ℃ (15-20)min (With content holding time)once a day

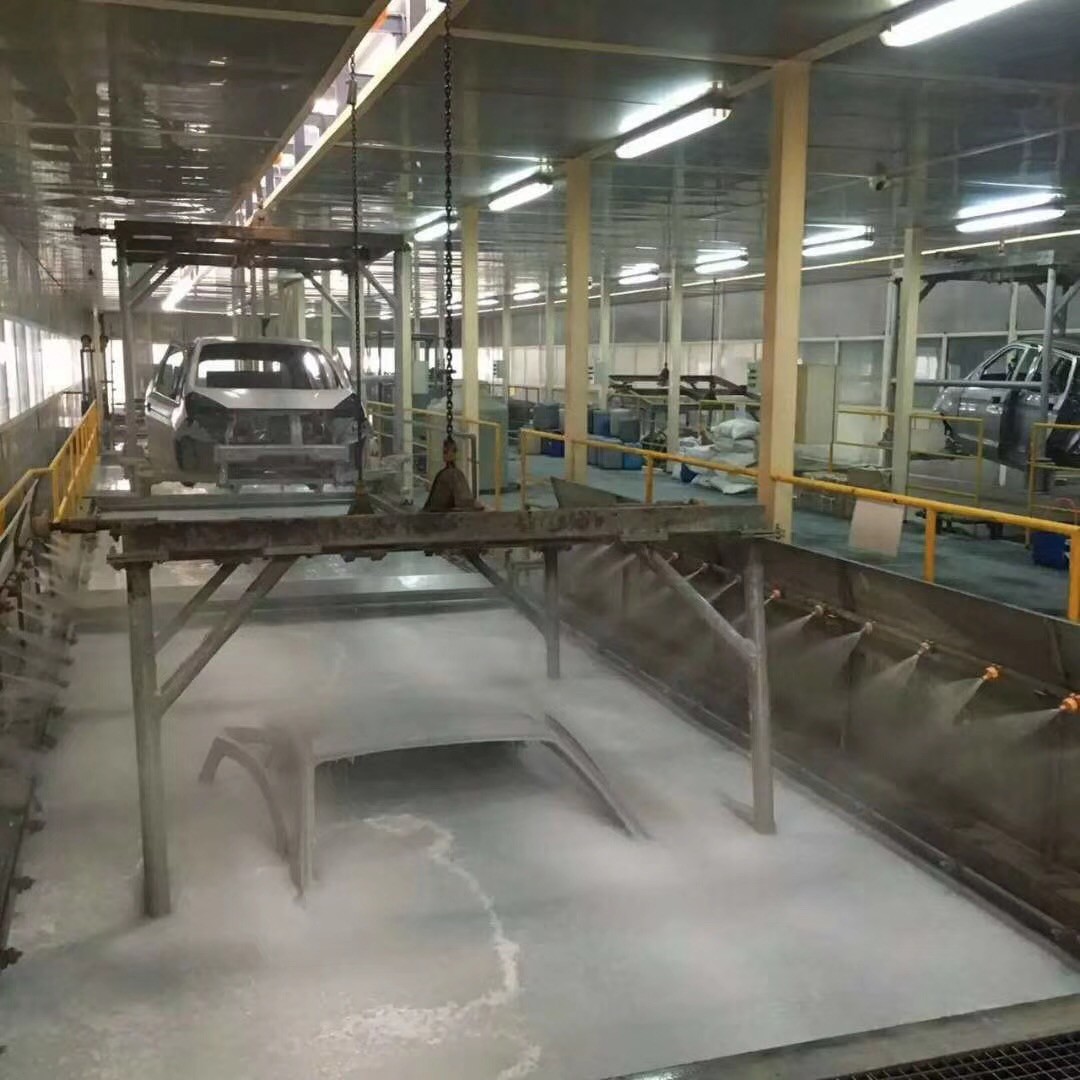

    Customer production site​ :


    Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved
