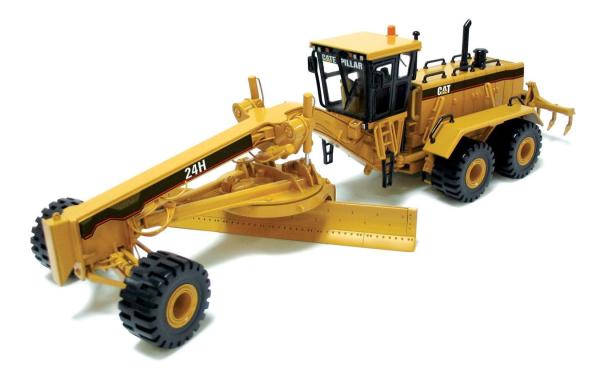

Solution for electrophoresis paint for grader
Product Introduction :
HS-6060LB/HS-2568G Gray Cationic Epoxy Electrocoat for auto is a
new generation electrophoretic coating researched and developed by
HLS Paint (Shanghai) Co., Ltd.
It represents modern technology of cathodic electrophoretic coating
that is environment-friendly with high property and low cost. Such
coating does not contain heavy metal like lead, tin, cadmium and
mercury etc. It is a two-component, water-dispersed
resin,meanwhile, it took in features of previous products, and can
adapt galvanized steel sheet perfectly, almost can be applied to
foundation coating of all metal,
such as: cold and hot rolled steel sheet, galvanized steel sheet,
aluminum products, zinc-aluminum alloy sheet and stainless steel
sheet etc.
This product features shown below:
1,Strong anti-corrosion properties, good salt spray resistance
workpiece edge.
2,Good stability of bath can adaptable for a longer updating
cycle.
3,Excellent leveling coating,good bonding force and compatibility
with plastic powder
The main component :
Matrix resin: polyurethane modified epoxy resin
| Curing agent: totally enclosed multi-isocyanates |
Neutralizing agent: organic acid
| Additives: surface active agent, prevent shrinkage cavity agent |
Bath on site management project :
Good bath data and coating quality, from the strict parameters
management and maintenance of equipment, production line according
to its own reality time situation, can have different management
project and specifications, recommend the construction parameters
see the table below for reference:
| Classification | Project | Control Data | Testing frequency |
| New bath | Anolyte |
| Electrophoresis tank | Ratio | 1:(4-5) | -- | |
| Ripening time | 24-48 | -- | |
| Solid ( 120 ℃ /1h ,% ) | 14±4 | -- | once a day |
| PH | 5.7-6.2 | 2.0-3.5 | once a day |
| Conductivity ( μs/cm ) | 1200±400 | 1500±500 | once a day |
| P/B | 0.20-0.30 | once a week |
| Solvent content (%) | 0.8-1.5 | once a week |
| Liquid level Fall head (cm ) | 10-15 | once a day |
| ED voltage( V ) | 0-300 | once a day |
| Break voltage ( V ) | ≥320 | once a week |
| Bath temperature ( ℃ ) | 28-35 | once a day |
| ED time( S ) | 60~180 | once a day |
| UF － 1 Tank | Solid content (%) | ≤2.0 | once a day |
| UF － 2 Tank | Solid content (%) | ≤0.8 | once a day |
| Baking furnace | Provisions furnace temperature( ℃ ) | 180-190 | once a day |
| Curing conditions | Drying temperature |
(175-185) ℃ ×(15-20)min (With content holding time) | once a day |
Construction equipment:
Cathodic electrophoretic coating construction in the
electrophoresis tank, so need to have the following equipment:
Electrophoresis tank
| Circulation devices (including filter, fill the paint device) | DI water equipment |
DC power supply and the power supply unit
| Anode box (tube) and circulation device | Ultrafiltration device |
Cleaning devices
| Heat exchanging equipment | Curing device |
