Low temperature curing Black electrophoresis paint
Product Introduction :
OHT-825/OHT-825 Ultra Low temperature Black Cationic Epoxy
Electrocoat, is HLS Paint (Shanghai) Co., Ltd. the ninth generation
of independent research and development of electrophoretic coating.
The lead, cadmium, chromium, mercury and other heavy metals,
two-component aqueous dispersion resin. At the same time, inherited
the characteristics of several generations of product quality,
OHT-825 on galvanized steel sheet has good adaptability, almost at
the bottom of all the metal material coating
such as: cold rolled steel, galvanized steel, aluminum, stainless
steel plate, rubber parts, zinc and aluminum alloy plate, such as
applicable.
|
This product features shown below:
The appearance of the coating is flat, delicate, smooth.
| Good stability of bath can adaptable for a longer updating cycle. |
The bath has strong anti-shrinkage and anti-pollution ability.
| The ability of corrosion resistance is strong, and the edge of the
workpiece is good in salt spray resistance |
Main ingredients:
1,Matrix resin: Acrylic modified epoxy resin
2,Solvent: alcohol ether
3,Pigment: carbon black, kaolin, antirust pigment
Product quality data :
| Project | Technical data | Test standard |
Resin
(OHT-825) | Black Paste (OHT-825) |
| pH | 25℃ | 6.0±1.0 | —— | GB/T 9724 |
| Conductivity | 25℃, μs/cm | 1400±500 | —— | HG/T 3334 |
| Appearance | —— | Milky white liquid | Black viscous liquid,no agglomeration | Visual |
| Storage stability |
No stratified state, and there were no obvious difference compared
to before storage | In 5-35 ℃ temperature 1 year |
Note: pH, conductivity measurement in the resin/pure water = 1:1
dilution
Storage, packaging and transportation :
This product is a water-borne industrial coatings, non-hazardous,
non-inflammable and explosive products; transportation to prevent
direct sunlight, avoid freezing (>5℃ ); Packaging for 50/60/200L
Plastic barrel; in the transport and storage of drums should be
maintained clean, avoid charging the dirt brought in on drums
during filling tank, again checked and confirmed that the quality
of products, including paste resin, emulsions and additives should
be indoor storage, good ventilation, dry, protect against freezing
and overheating, the storage temperature should be controlled at
5～35℃, products from the date of production, over shelf,
experimentation is required to determine whether can continue to
use.

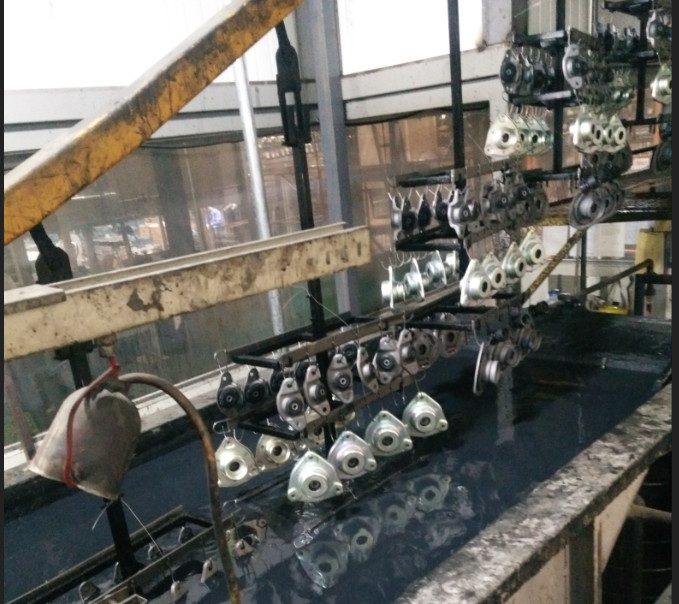

Customer production site :
