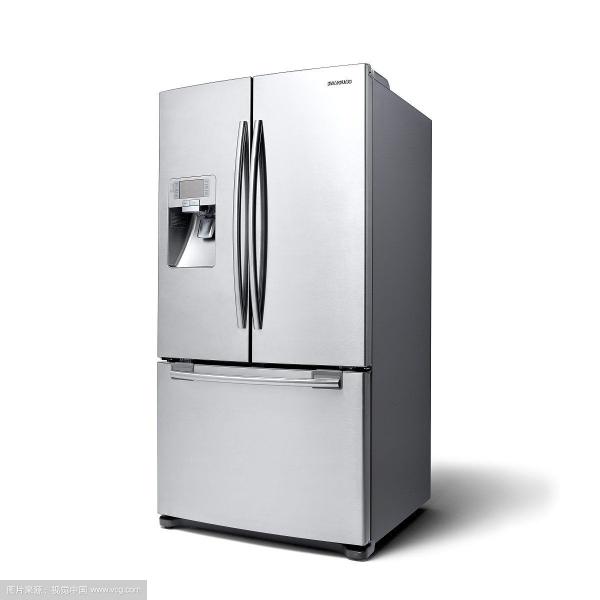

Special refrigerator white electrophoresis paint
Product Introduction :
HS-5300LB/HS-5300 White epoxy acrylic cathodic electrophoretic
coating for auto is the 8th generation electrophoretic coating
researched and developed by HLS Paint (Shanghai) Co., Ltd. in
cooperation with Germany HS International Chemical Industry
Group,and get the national invention patent and the Shanghai
science and technology commission of high-tech transformation
project.
It represents modern technology of cathodic electrophoretic coating
that is environment-friendly with high property and low cost. Such
coating does not contain heavy metal like lead, tin, cadmium and
mercury etc. It is a two-component, water-dispersed resin. The
coating that does not contain tin element meet the latest
environ-mental regulations of European Union, North America, Japan
and other requirements in advance, which is the inevitable trend of
future environ-mental coating and low cost; meanwhile, it took in
features of previous products, and can adapt galvanized steel sheet
perfectly, almost can be applied to foundation coating of all
metal,
such as: cold and hot rolled steel sheet, galvanized steel sheet,
aluminum products, zinc-aluminum alloy sheet and stainless steel
sheet etc.
Main ingredients:
Additives:surface active agent, prevent shrinkage cavity agent
Curing agent: totally enclosed multi-isocyanates
Pigment: carbon black, kaolin, antirust pigment
This product features shown below:
Good stability of bath can adaptable for a longer updating cycle
|
Strong anti-corrosion properties, good salt spray resistance
workpiece edge
|
Coating fullness of good,better sub strate hiding
|
Product quality data
| Project | Technical data | Test standard |
Resin
(HS-5300LB) | White Paste (HS-5300) |
| pH | 25℃ | 6.0±1.0 | —— | GB/T 9724 |
| Conductivity | 25℃, μs/cm | 1400±400 | —— | HG/T 3334 |
| Appearance | —— | Milky white liquid | White viscous liquid,no agglomeration | Visual |
| Storage stability |
No stratified state, and there were no obvious difference compared
to before storage | In 5-35 ℃ temperature 1 year |
Note: pH, conductivity measurement in the resin/pure water = 1:1
dilution
Filling tank proportion and method
⑴ Bath preparation
Ratio:
Resin 800.00-1000.00
Paste 200.00
DI water 2000.00
Total 3000.00-3200.00
⑵ Ripening conditions
Sample quantity: 3000～3200g
Container: 5L (Diameter 16cm)
Tank temperature:30±2 ℃
Time: 24～48Hr
Mixed conditions: impeller diameter 8cm (speed 200rpm)
(3) Coating conditions
Experimental panel: phosphated cold-rolled steel plate
Tank temperature: 30±2 ℃
Pole ratio: A/C = 1/2 ~ 1/4
Distance of electrodes: 15cm
ED time: For full immersing 1-3 minutes ( 20 seconds soft start)
Baking conditions:(150-170)℃×(20-30)min (Keeping temperature of
parts coated)
Specification statement :
This manual contains information and recommendations are based on
our current knowledge and experience, accurate to the date of
publication so far. It cannot be used as a guarantee or commitment,
in any case, responsibility for users to decide on the use of this
product is intended availability. We remain in the process or new
development within the scope of the right to change product
specifications. Because we cannot control the construction
conditions, hope through customers own experiments to determine
satisfaction with the final results.
