Color electrophoretic paint for casting pieces
Product Introduction :
HR-4000BLB Epoxy acrylic Color Cationic Electrocoat is HLS Paint
(Shanghai) Co., Ltd., the eighth generation of independent research
and development of electrophoretic coating. This coating by epoxy
acrylate modified, the film also has excellent corrosion resistance
and weatherability, smooth appearance and full, suitable as a base
topcoat system. In addition, the lead, cadmium, chromium, mercury
and other heavy metals, two-component, water dispersible resin, at
the same time, previous generations of the product characteristics,
have good adaptability to the galvanized steel, almost can be
applied to all metal coating
|
such as:cold hot rolled steel, galvanized steel, aluminum, zinc
Aluminum Alloy plate, stainless steel plate.
|
This product features shown below :
The appearance of the coating is flat, delicate, smooth, uniform
high gloss
| Good stability of bath can adaptable for a longer updating cycle |
The bath has strong anti-shrinkage and anti-pollution ability
| Coating fullness of goo |
Main ingredients:
Pigment: Titanium pigment, Organic pigment, kaolin, antirust
pigment
Additives: surface active agent, prevent shrinkage cavity agent
Curing agent: totally enclosed multi-isocyanates
Matrix resin: acrylic modified epoxy resin
Bath on site management project :
Good bath data and coating quality, from the strict parameters
management and maintenance of equipment, production line according
to its own reality time situation, can have different management
project and specifications, recommend the construction parameters
see the table below for reference:
| Classification | Project | Control Data | Testing frequency |
| New bath | Anolyte |
| Electrophoresis tank | Ratio | 1:4 | -- | |
| Ripening time | 24-48 | -- | |
| Solid ( 120 ℃ /1h ,% ) | 15±5 | -- | once a day |
| PH | 5.4-6.0 | 2.0-3.5 | once a day |
| Conductivity ( μs/cm ) | 1100±500 | 1400±900 | once a day |
| P/B |
Smooth horizontal plane and vertical plane without obvious
differences | once a week |
| Solvent content (%) | 0.8-1.5 | once a week |
| Liquid level Fall head (cm ) | 10-15 | once a day |
| ED voltage( V ) | 0-300 | once a day |
| Break voltage ( V ) | ≥350 | once a week |
| Bath temperature ( ℃ ) | 30±2 | once a day |
| ED time( S ) | 60~180 | once a day |
| UF － 1 Tank | Solid content (%) | ≤2.0 | once a day |
| UF － 2 Tank | Solid content (%) | ≤0.8 | once a day |
| Baking furnace | Provisions furnace temperature( ℃ ) | 170-190 | once a day |
| Curing conditions | Drying temperature |
(165-185) ℃ ×( 15-20)min (With content holding time) | once a day |
Storage, packaging and transportation :
This product is a water-borne industrial coatings, non-hazardous,
non-inflammable and explosive products; transportation to prevent
direct sunlight, avoid freezing (>5℃ ); Packaging for 50/60/200L
Plastic barrel; in the transport and storage of drums should be
maintained clean, avoid charging the dirt brought in on drums
during filling tank, again checked and confirmed that the quality
of products, including paste resin, emulsions and additives should
be indoor storage, good ventilation, dry, protect against freezing
and overheating, the storage temperature should be controlled at
5～35℃, products from the date of production, over shelf,
experimentation is required to determine whether can continue to
use.
If you want to learn more about HLS coating products, please
contact Sales Department of Shanghai HLS now

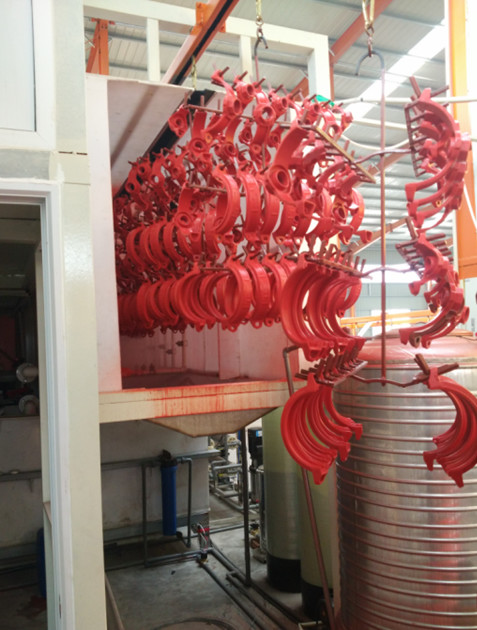

Customers in the colorful industry :
